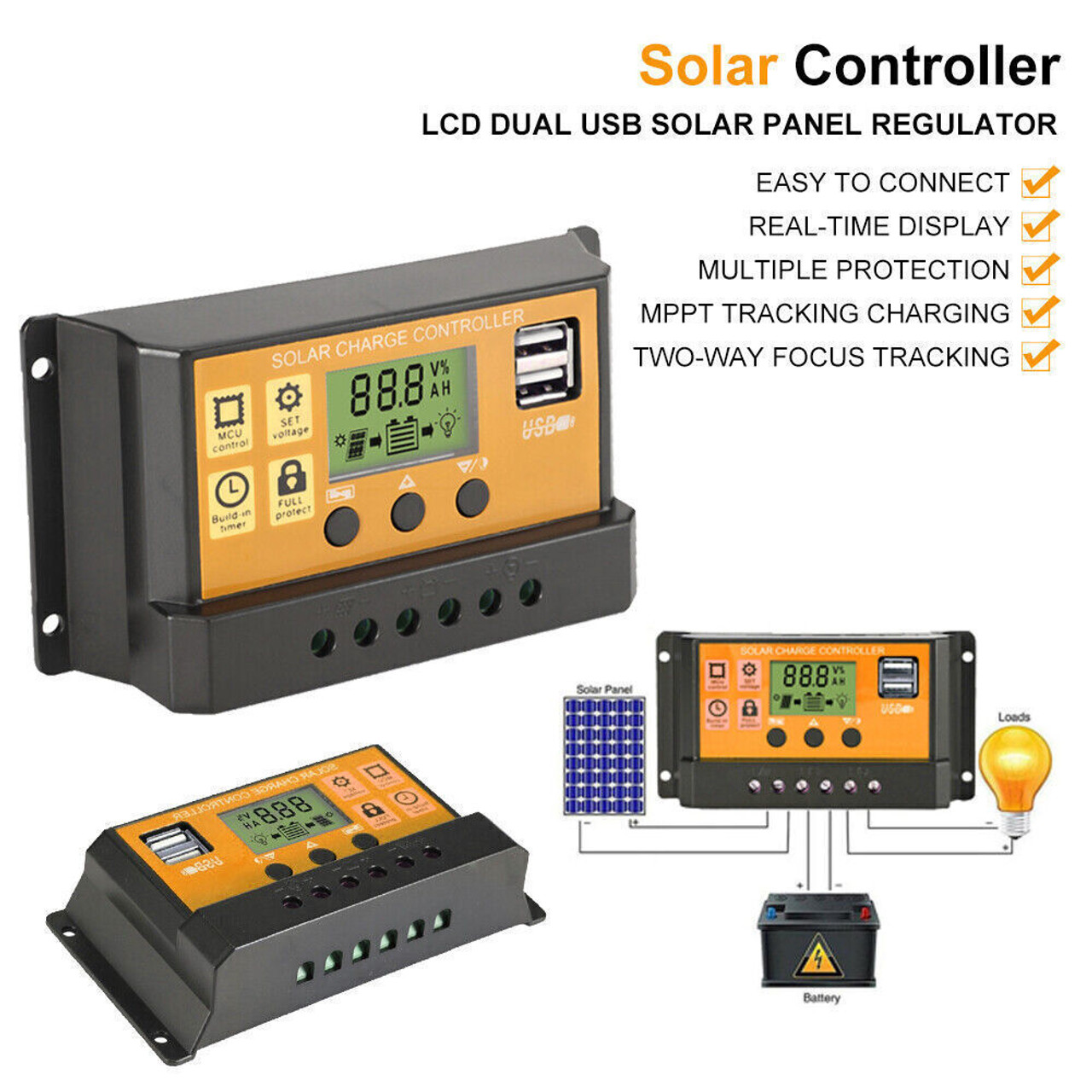

MPPT Solar Panel Regulator Charge Controller Auto Focus Tracking 30-100A 12V/24V

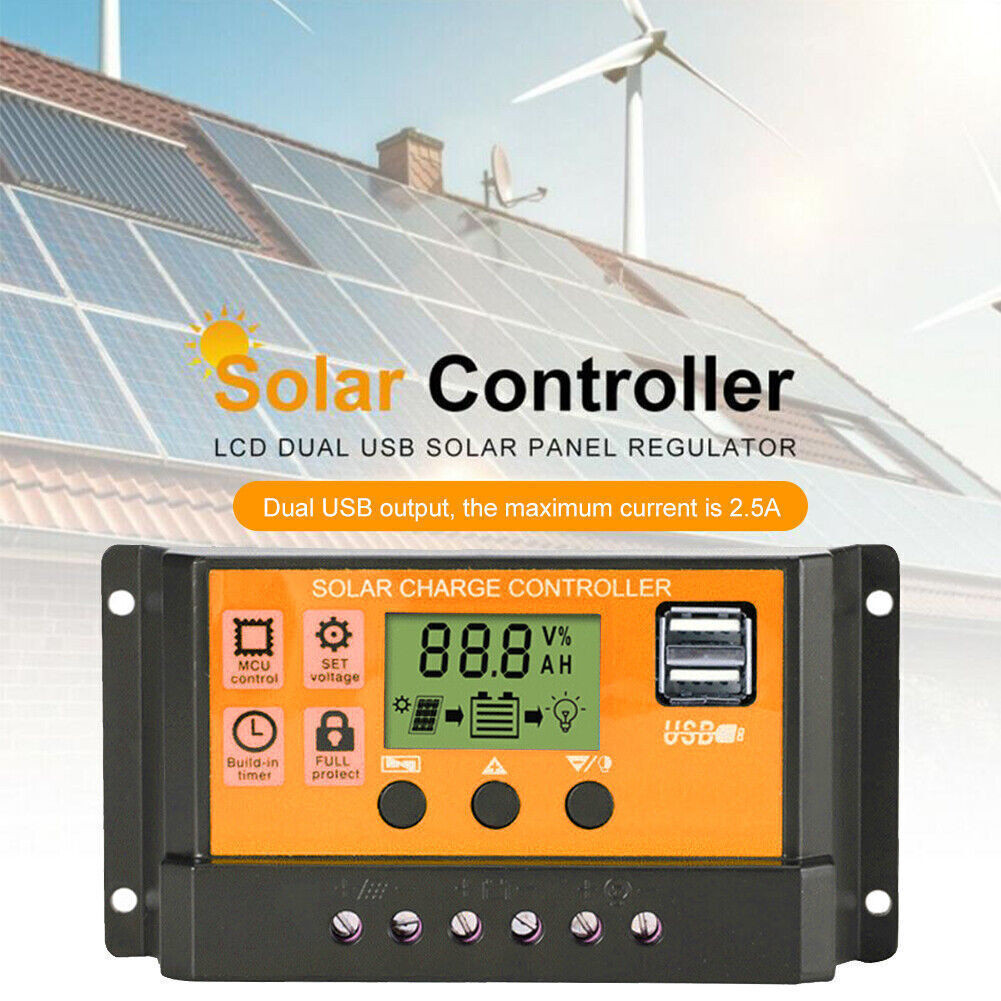

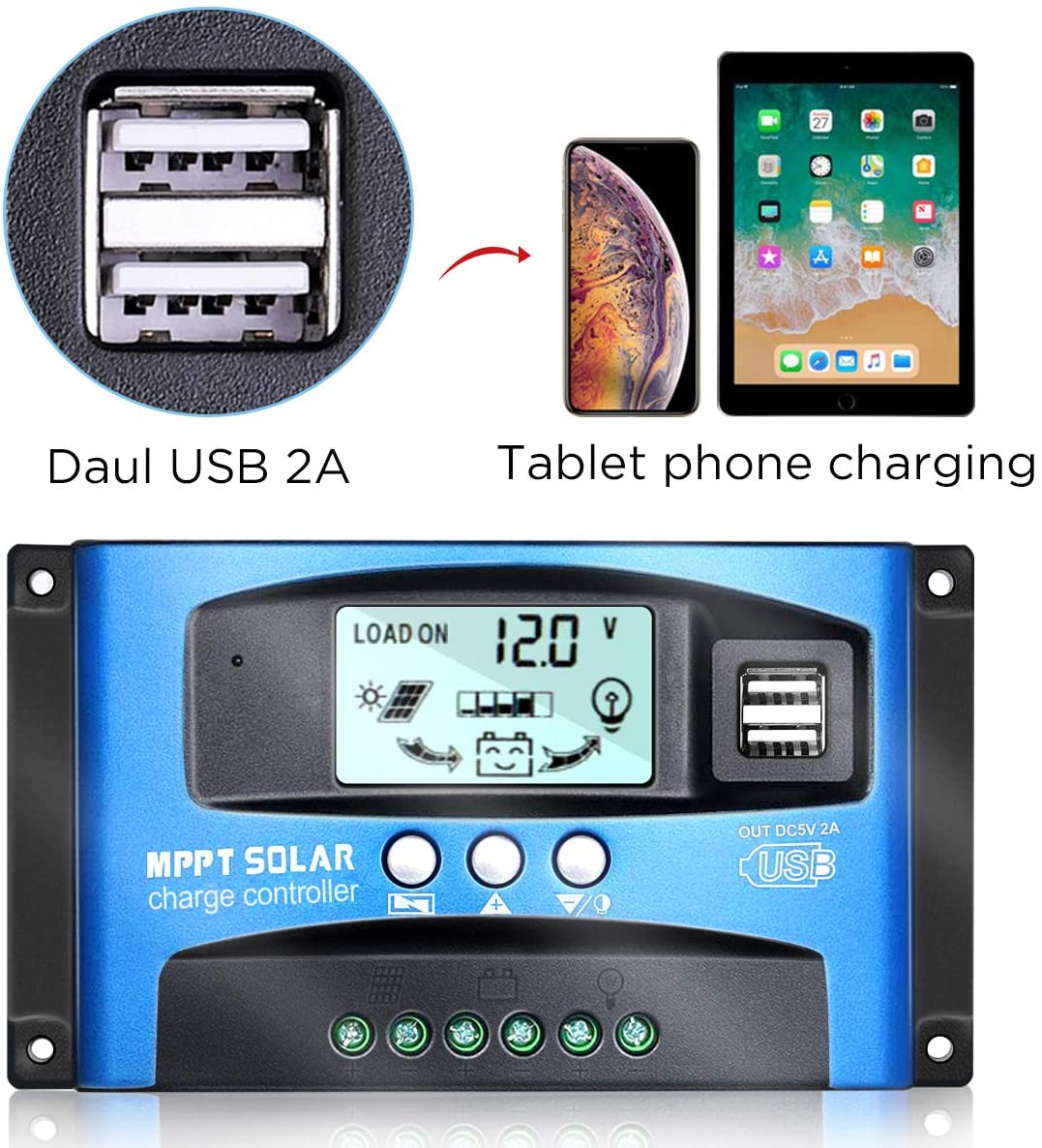

☀️ 30A/60A/100A SOLAR CHARGE CONTROLLER: Our Solar Charge controller compatibility with 12V and 24V system, Discharge Current: 30A/60A/100A; dual USB output 5V / 2.5A, Built-in industrial microcontroller for automatically management, memorizing various parameters set by the user and the data won't be lost when the battery runs out, suitable for lead-acid batteries: OPEN, AGM, GEL.

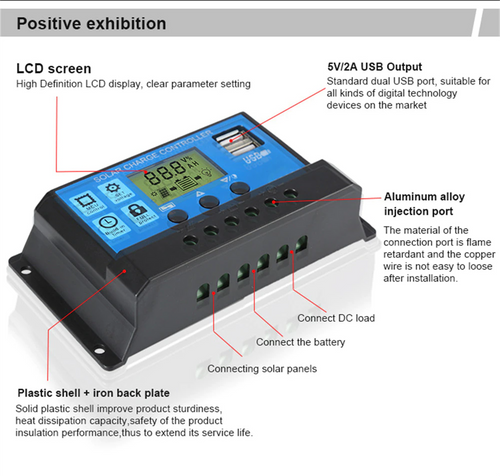

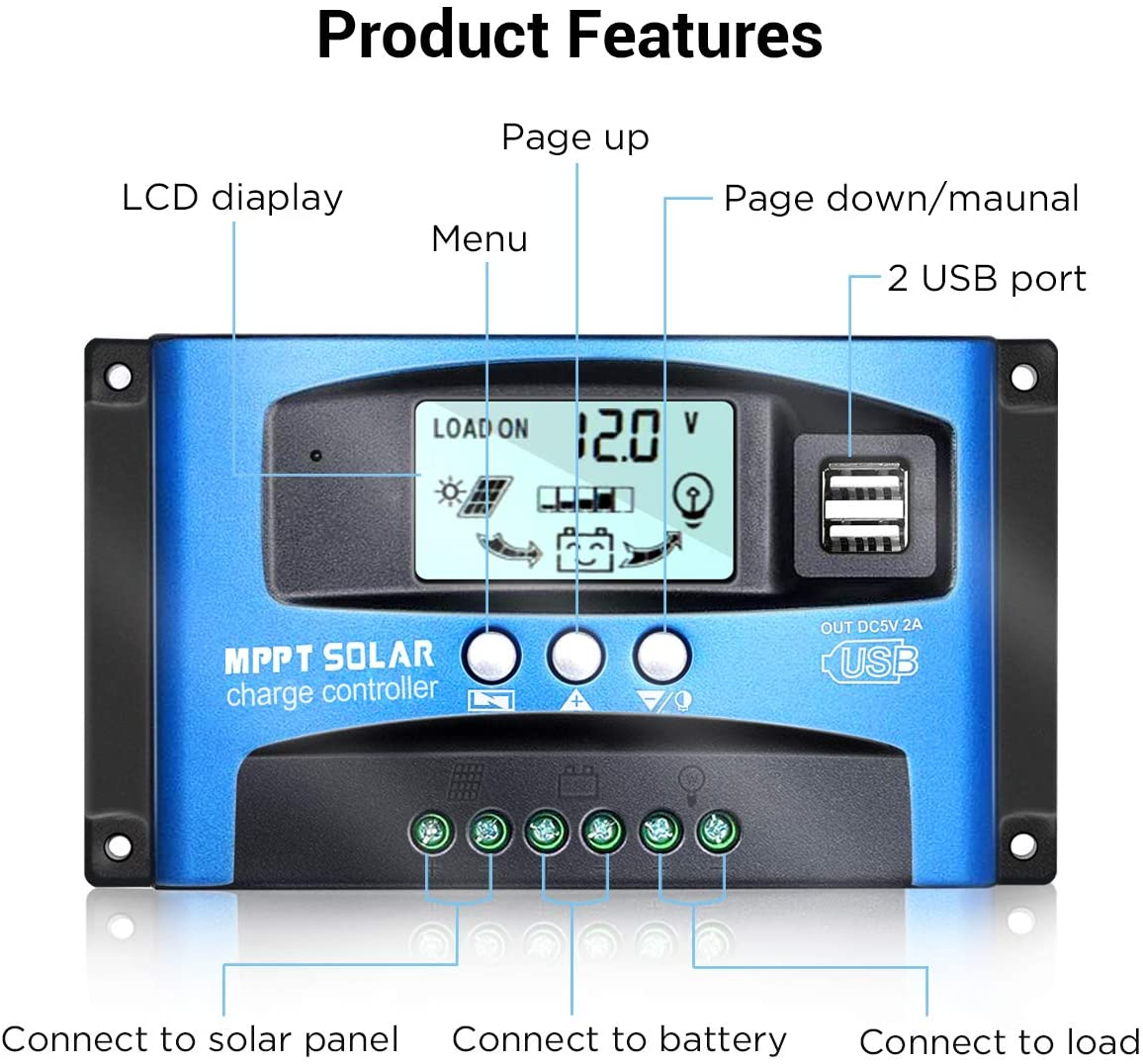

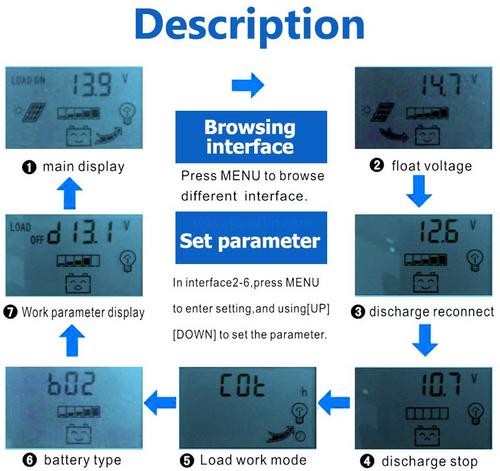

☀️ FUNCTIONAL LCD SCREEN: Easy to install and operate, Intuitive LCD display that can clearly indicate the status and data is able to switch modes and parameter configuration, The level of complete power-off is adjustable, which can perfectly protect the lithium battery from over-discharge, suitable for home, industrial, commercial etc.

☀️ 3-STAGE PWM CONTROL CHARGING: Fully 3-stage PWM regulation charging using direct charge, lifting charge, floating charge three-stage PWM regulation charging mode. Using the controller to realize efficient and fast intelligent charging, and effectively prolong the service life of the battery.

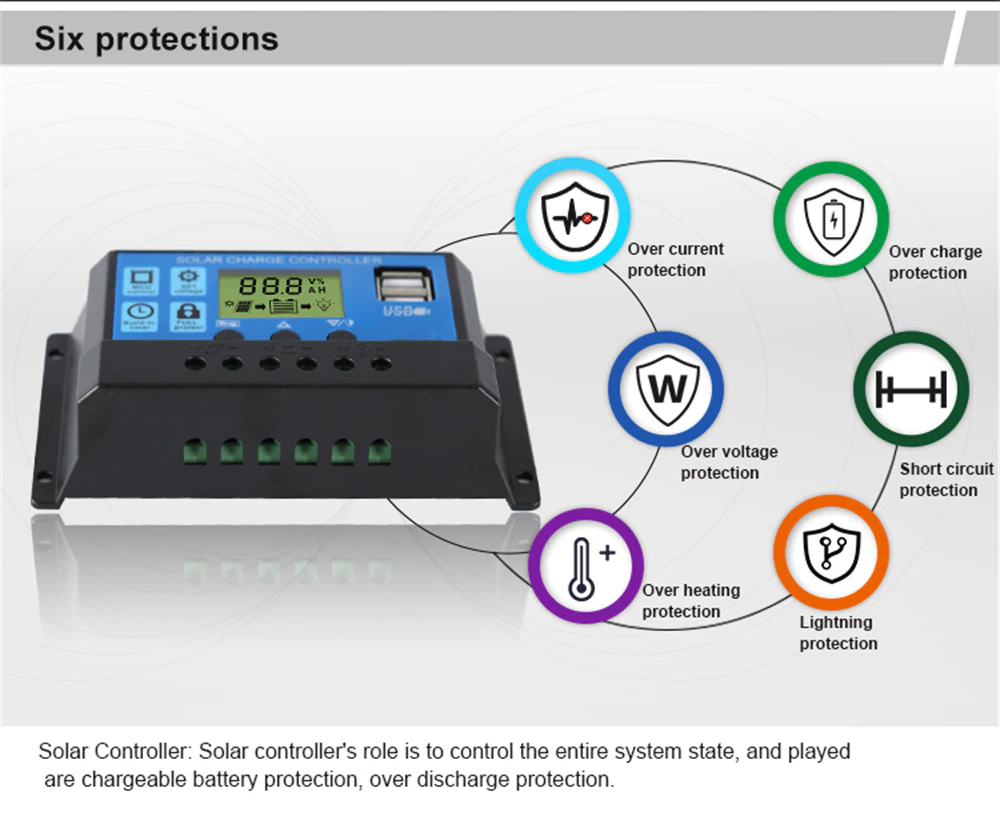

☀️ MULTIPLE INTELLIGENT PROTECTION: Built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the controller, a reliable protector for your devices.

☀️ OUR SALES SERVICE: Our Solar charge controller built-in instructions, please refer to the operating instructions to learn how to install and use. If you are not satisfied with your order, We have professional customer service personnel who can solve your problems online 24/7.

Specifications:

Color: Blue / Orange
Material: ABS
Rated Voltage: 12V/24V
Charging Mode: PWM+MPPT

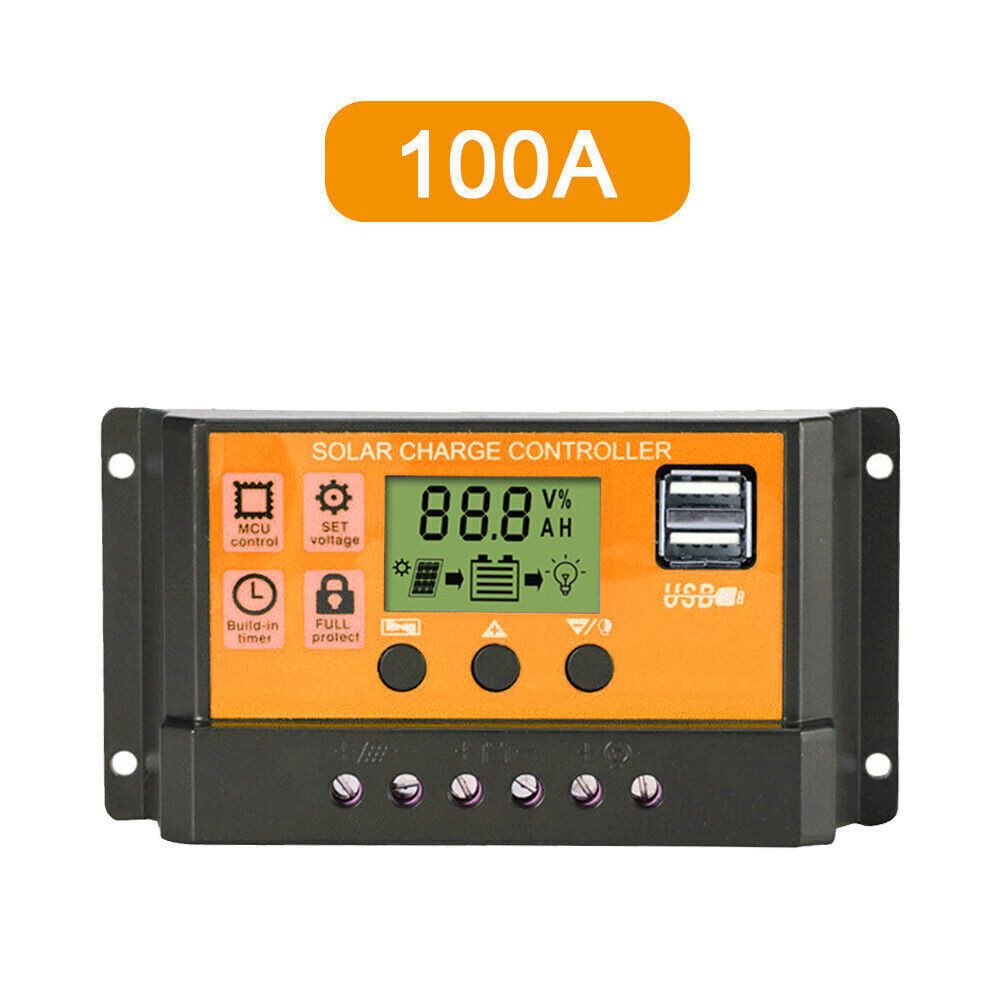

Rated Current: 30A/60A/100A
Max PV VOTAGE: 50V
Max PV Input Power: 360W(12V) 720(24V)
Display: LCD screen
Self-Consumption: <10MA
Overcharge Protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge Recovery Voltage: 12.6V / 25.2V
Over Discharge Protection: 10.7V / 21.4V
Over Discharge Recovery: 12.6V / 25.2V
Dual USB Output: 5V / 2A (charge mobile phone, iPad, etc.)

Common Questions
Q: How many watts (W) of solar panels can be connected.

A: 30A - 720W, 60A - 1440W, 100A - 1680W

Q: Does this controller support lithium batteries?

A: The new controller can be used for lead-acid batteries and lithium batteries. If you charge lithium batteries, you must set the charging parameters after connecting to the power. Please refer to the manual for details.

Q: My solar panel is 36V 200W, can I charge 12V battery?

A: To charge a 12V battery, the working voltage of the solar panel can be between 17V and 23V, and for a 24V battery, the working voltage of the solar panel can be between 36V and 46V.

Q: Can the inverter be connected to the load side of the controller?

A: Please connect the inverter directly to the battery and not to the load terminal of the controller.

Q: Does the controller have a requirement for battery capacity?

A: No, as long as the voltage corresponds to it (but the maximum current of the board and the battery capacity should correspond). For example, the current of the solar panel is 5 amps, the battery capacity is preferably 50 AH, the current of the solar panel is 10 A, and the battery capacity is preferably 100 AH. Do not use a large board to charge a small battery, which may be dangerous.

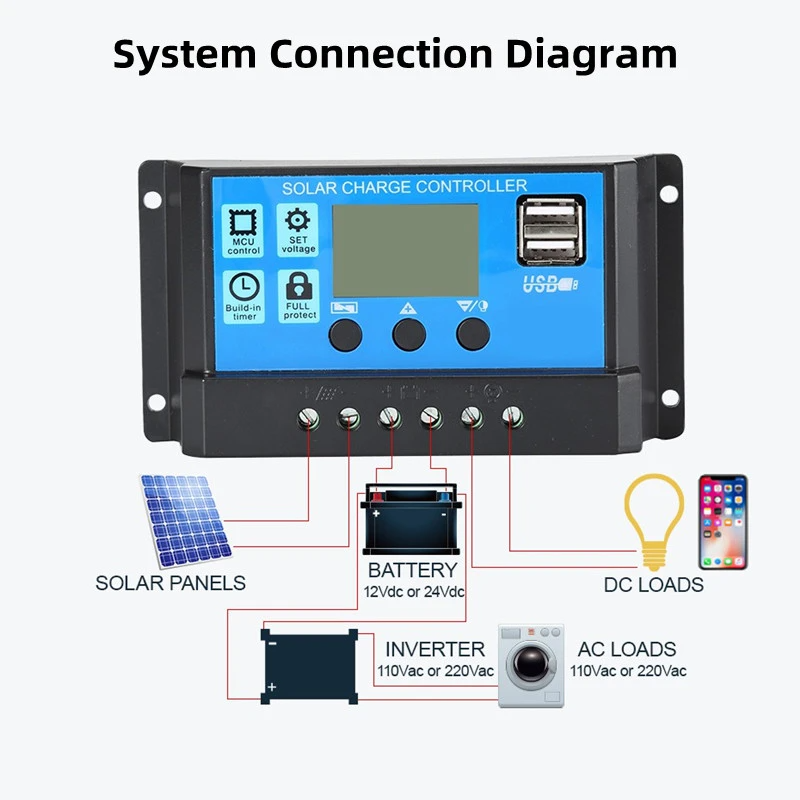

Q: How do you connect the solar panels, batteries, and controllers?

A: Please be sure to connect the battery first (to ensure that the battery is fully charged), then connect the solar panel. When disassembling, please remove the solar panel first, then remove the battery, please connect it exactly as this order, otherwise the controller and other components probably.

Working temperature: -35 ℃ -60 ℃

12V fits 18V solar panel, 24V fits 36V solar panel

12.0 volt lead acid battery corresponding

The float voltage is set to: 13.6

The recovery discharge voltage is set to: 12.6
