Product Description
Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA
Product Details:

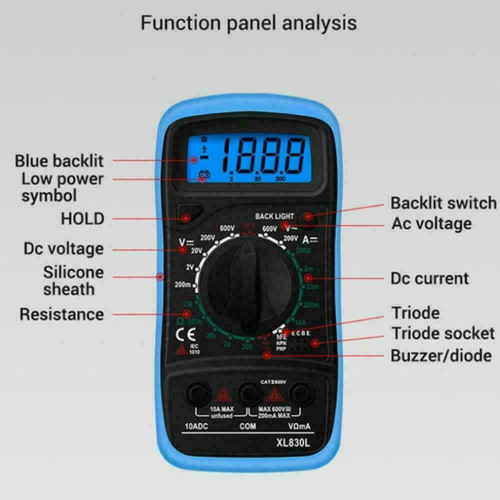

This digital multimeter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor
Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates
the display
Probes
DC Voltage Modes: 200mV (100µV resolution)
2V (1mV resolution)
20V (10mV resolution)
200V (100mV resolution)
600V (1V resolution)
DC Current Modes:
200µA (0.1µA resolution)
2mA (1µA resolution)
20mA (10µA resolution)
200mA (100µA resolution)
10A (10mA resolution)
AC Voltage Modes: 200V (100mV resolution)
600V (1V resolution)
Continuity Test: If continuity exists a built in buzzer will sound
Diode Test: Show the approximate forward voltage drop of the diode
Resistance Test: 200Ω (0.1Ω resolution)
2kΩ (1Ω resolution)
20kΩ (10Ω resolution)
200kΩ (100Ω resolution)
2mΩ (1kΩ resolution)
Transistor hFE Test: NPN & PNP 0-1000 3V 10µA
Additional Features: Data hold button locks displayed value
Back-light button illuminates the display
Kickstand
9V Battery - Not Included

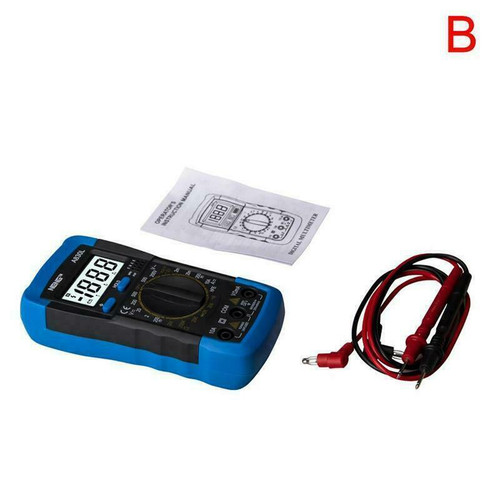

Package Includes: Multimeter
Probe Cables
Instruction Manual
