10/20/50/100/200 Pairs Male Female Solar Cable Connectors For DIY Solar Panel US

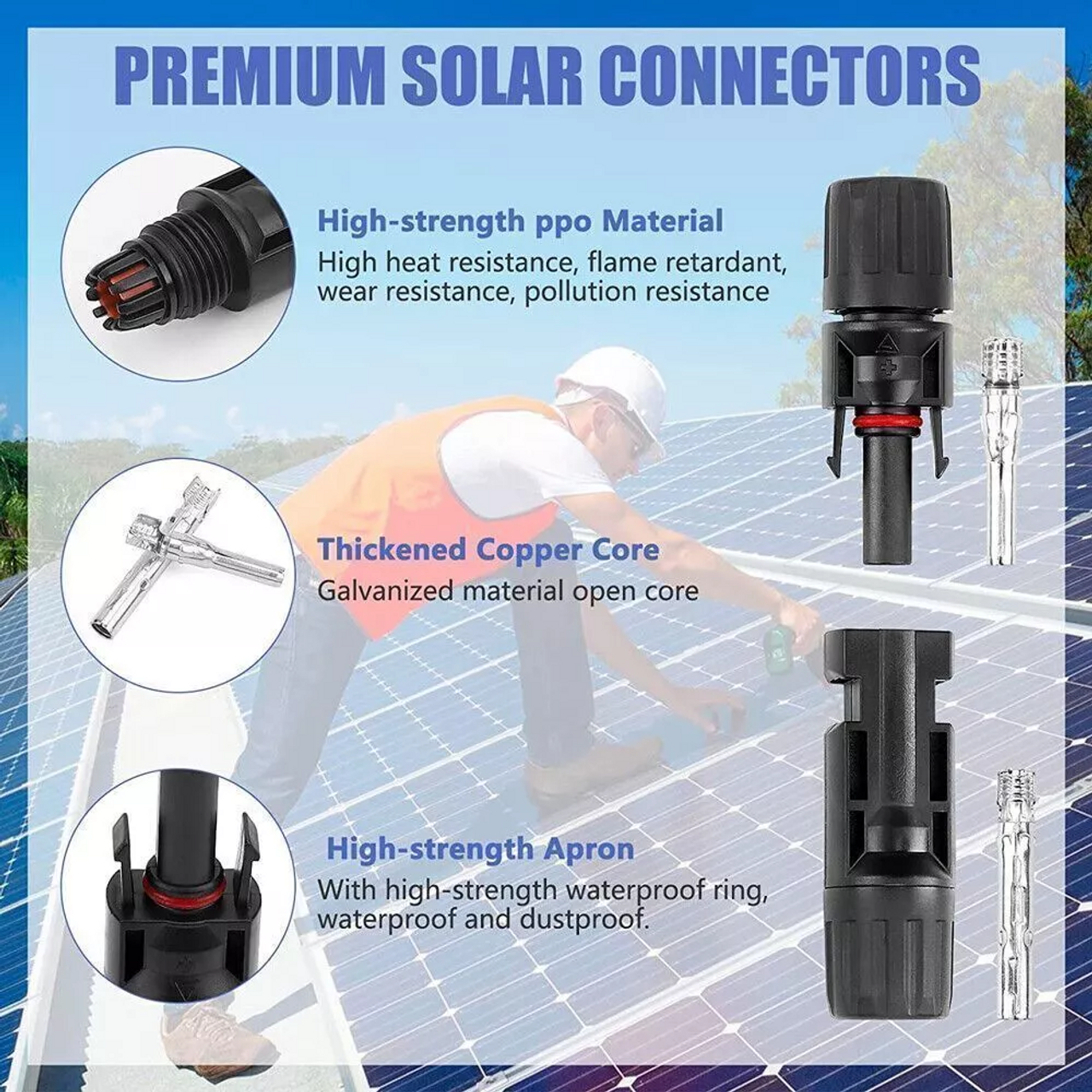

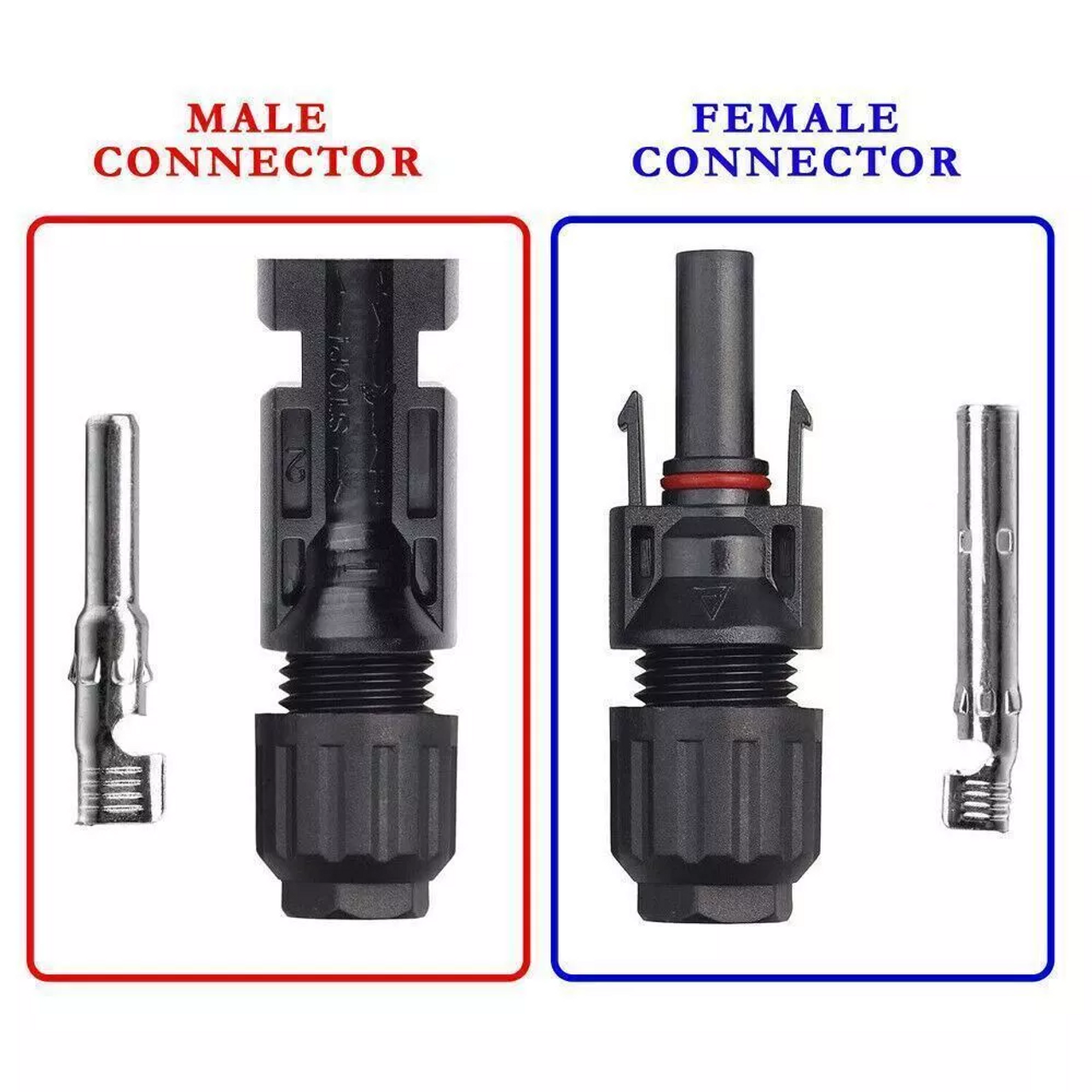

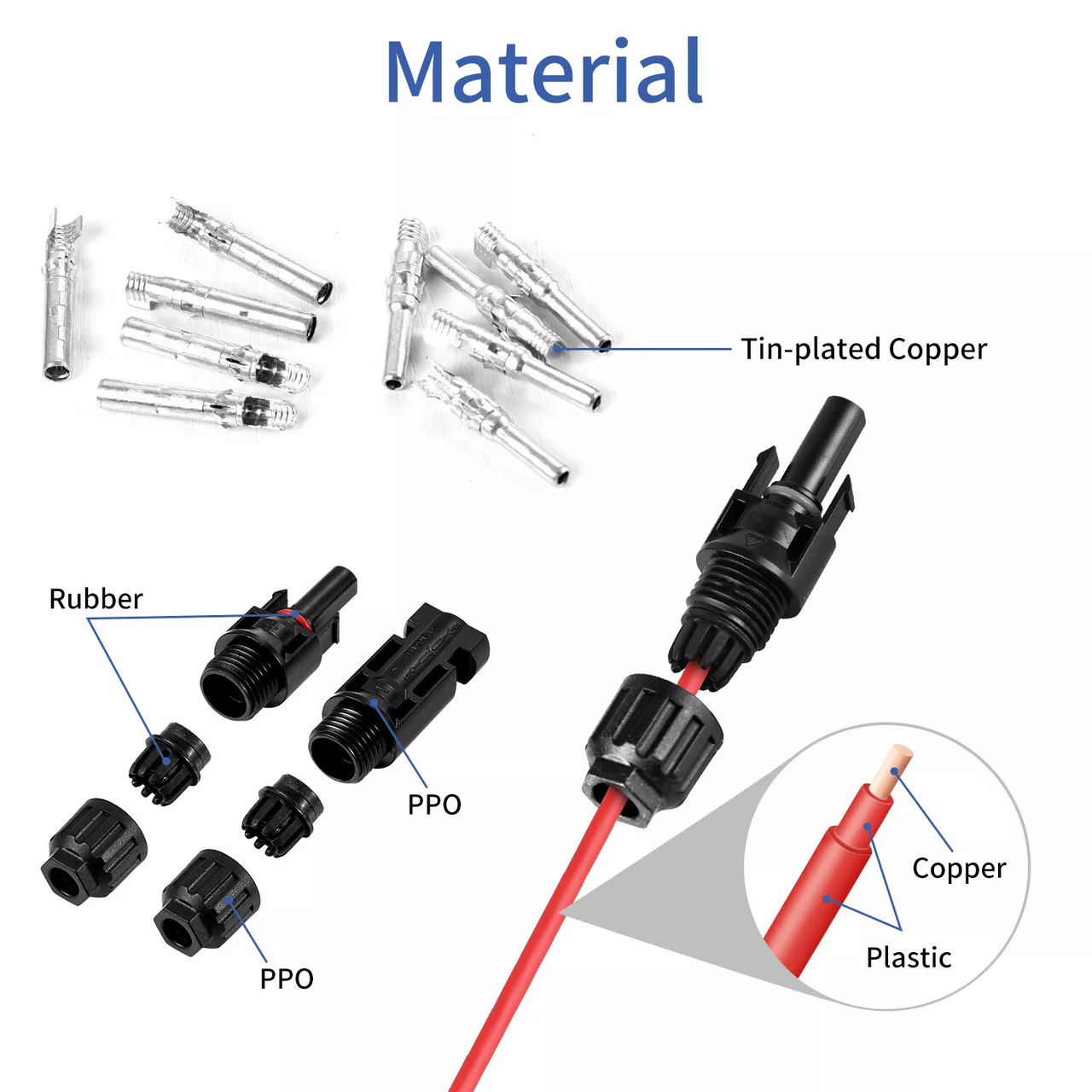

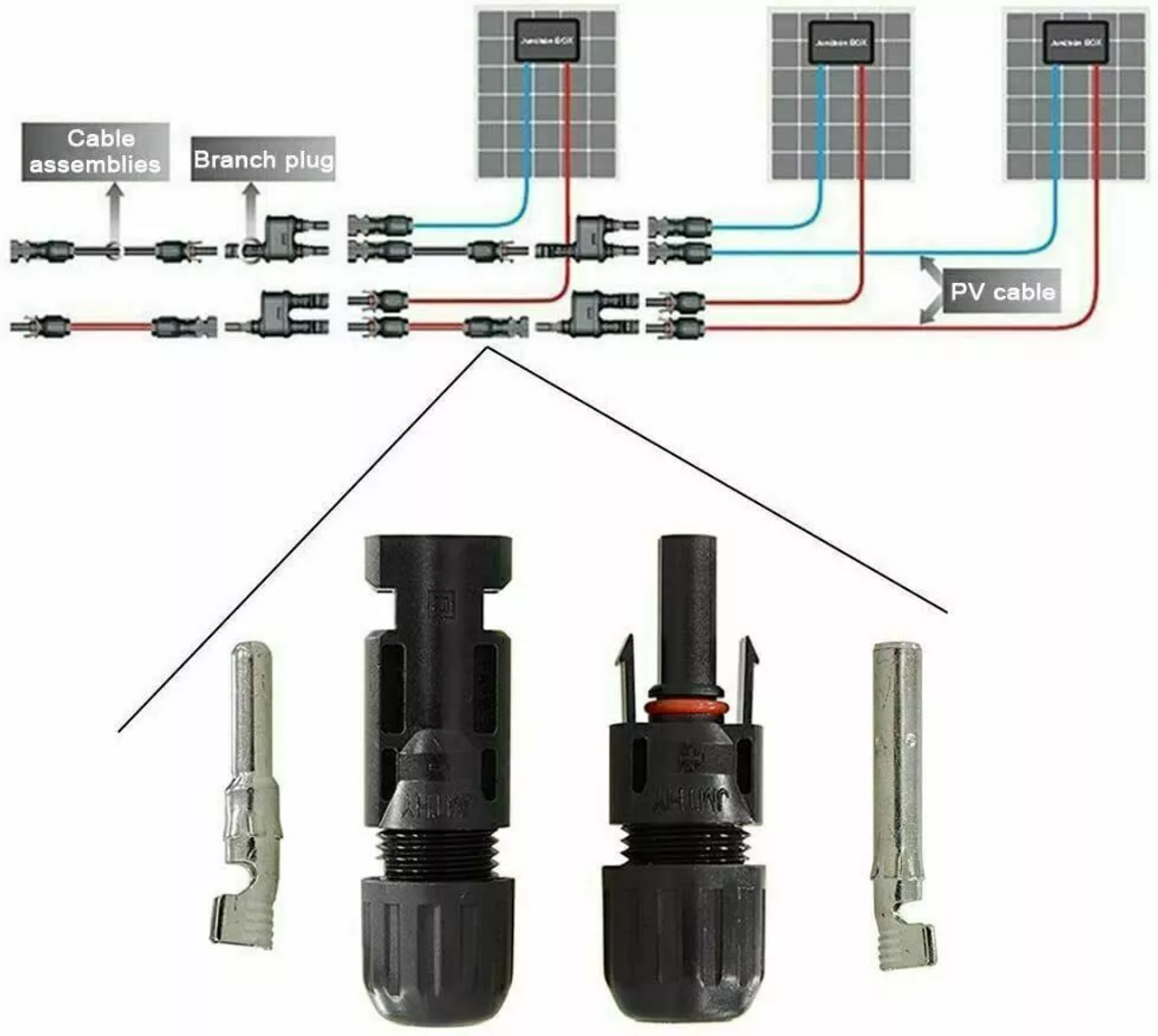

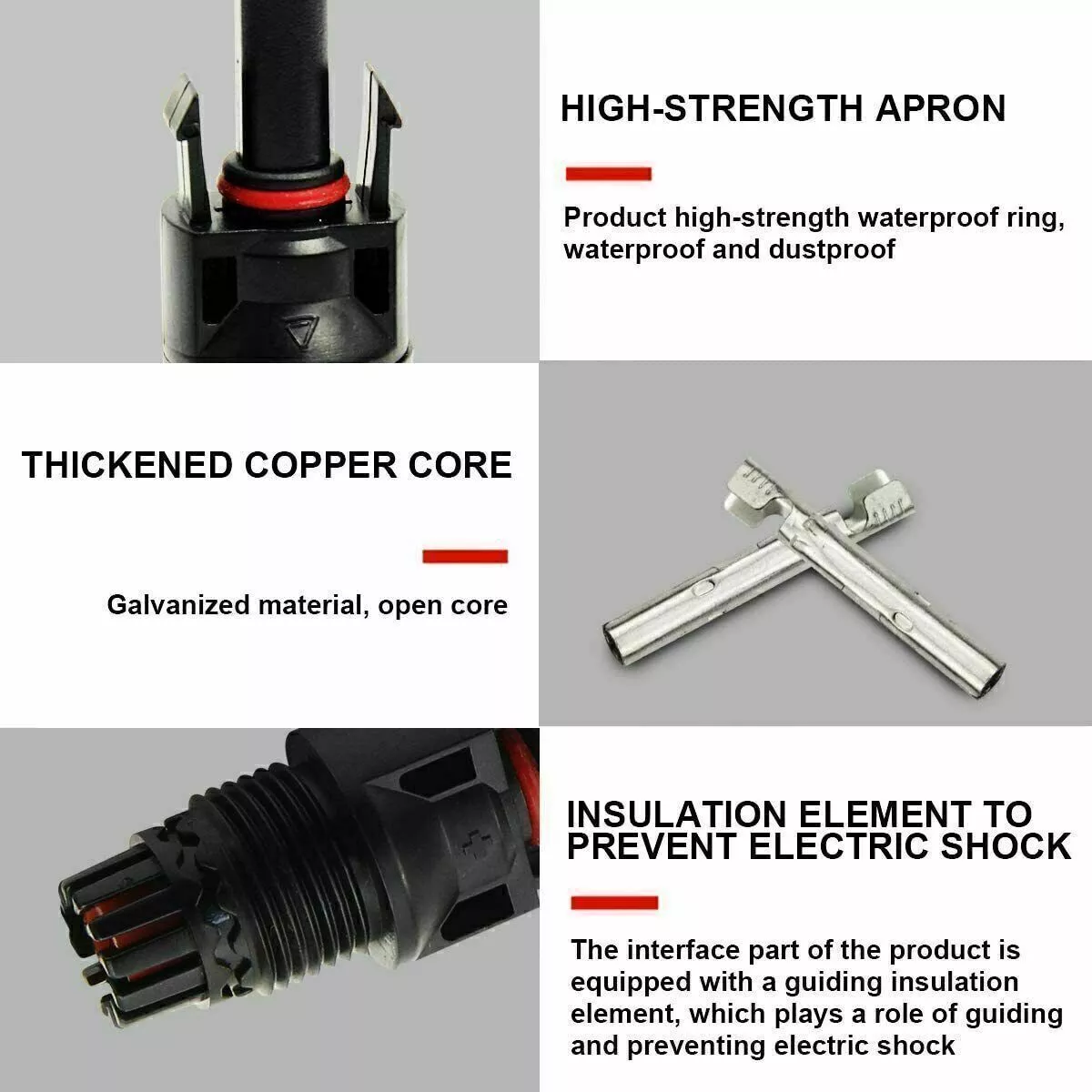

Premium Build Quality: Our solar connector kit features pairs of male and female connectors, crafted from high-quality PPO insulation and PA materials for enhanced durability. The connector pins are made from tinned copper, providing excellent conductivity. The PPO material offers exceptional resistance to aging and UV rays, ensuring long-lasting performance even under extreme weather conditions, such as scorching heat, heavy rainfall, or snowstorms.

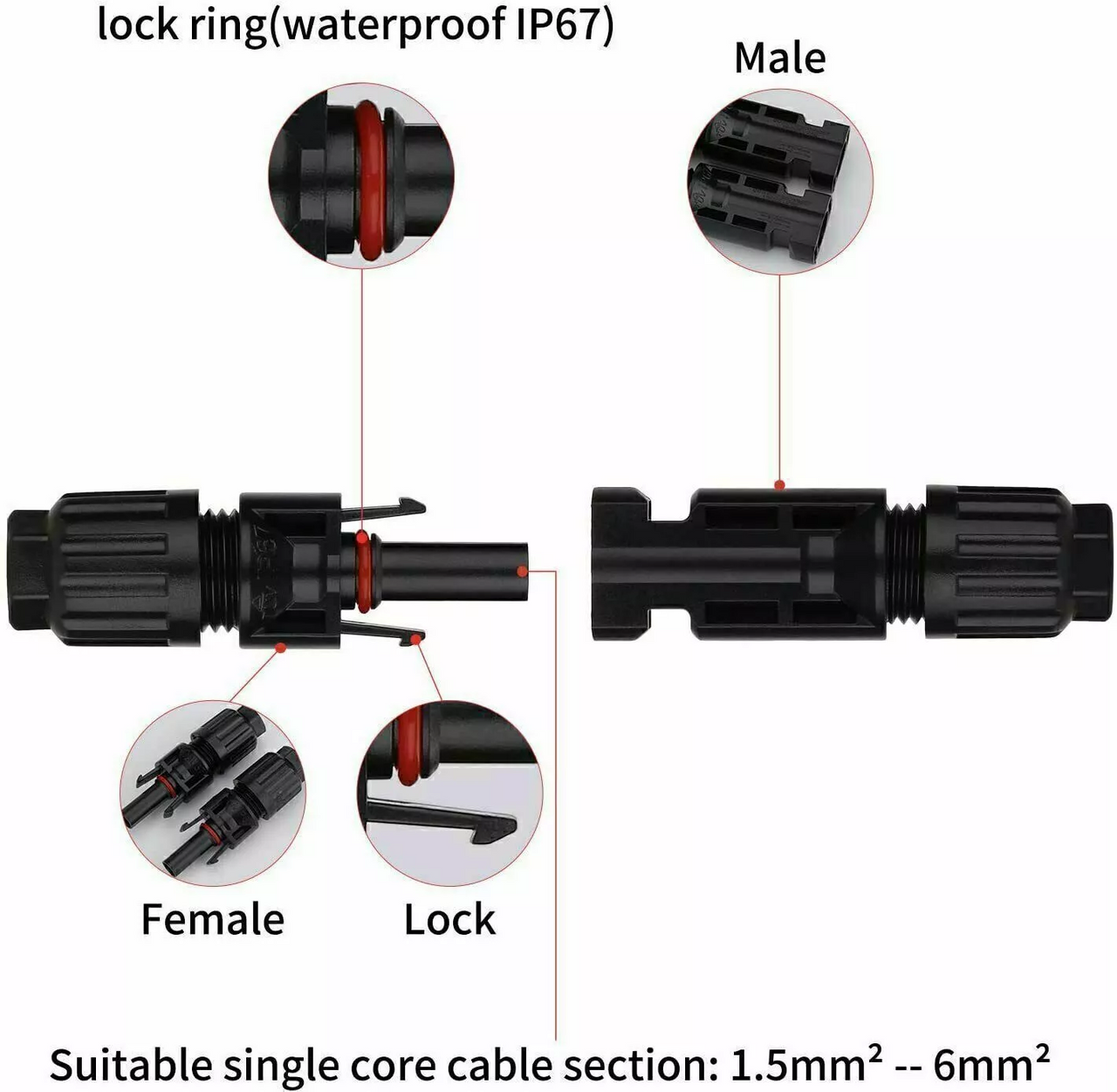

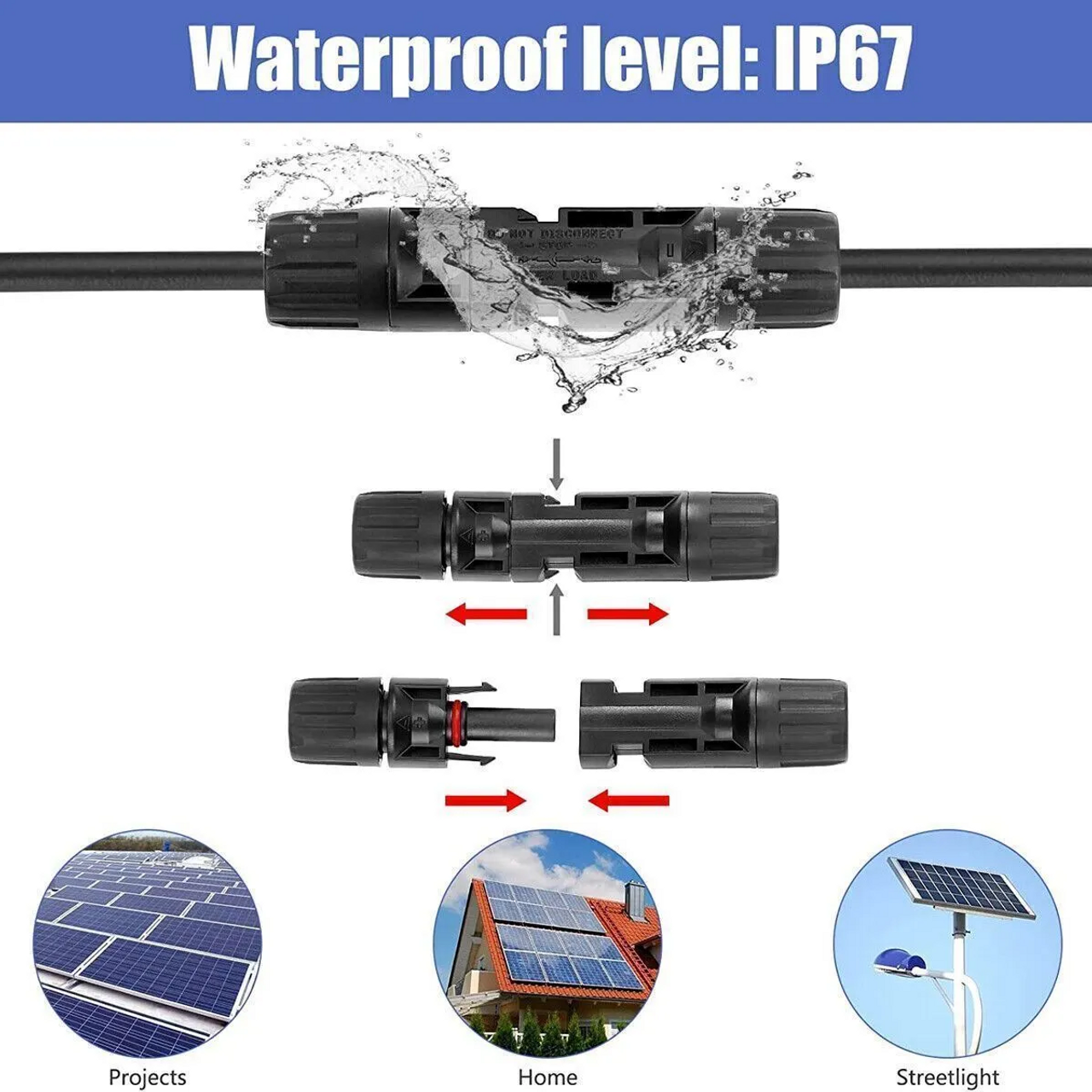

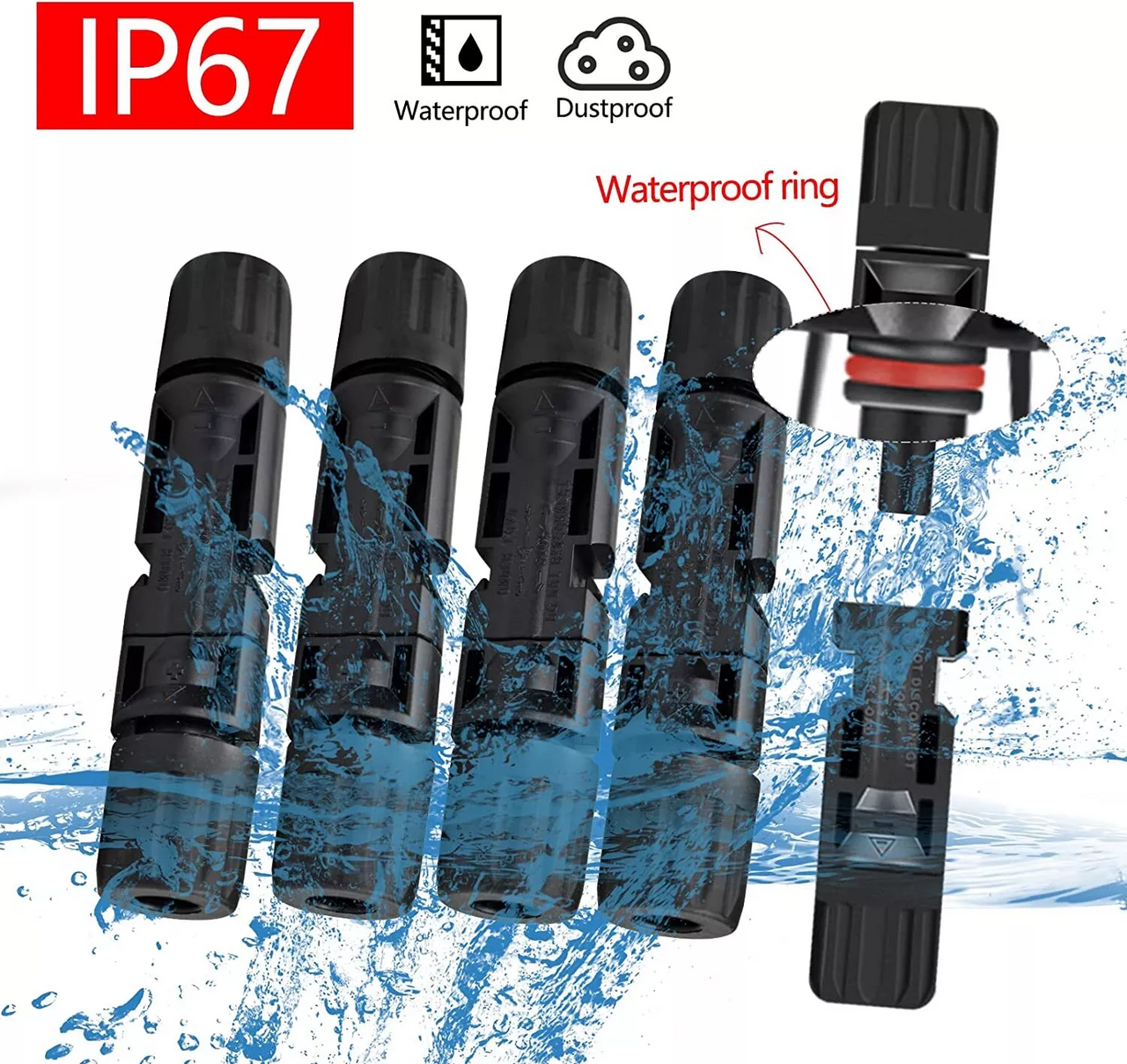

Superior Waterproof Design & Compatibility: Our connectors boast an IP67 waterproof rating, meaning they are fully protected against dust and can withstand submersion in water for up to 30 minutes. These connectors are compatible with a wide range of insulation diameters (2.5m㎡--6m㎡/14AWG - 10AWG), making them versatile and suitable for various solar panel setups. Their robust design ensures reliable operation in outdoor environments, providing peace of mind even in wet conditions.

High Power Capacity & Safety: With a rated voltage of 1000V DC and a current rating of 30A, the solar connectors are designed to handle significant power loads. Their flame retardant rating adds an extra layer of safety by reducing the risk of fire in case of electrical faults. The IP67-rated protection ensures a secure and stable connection, allowing these connectors to be used in demanding outdoor environments for prolonged periods without compromising on performance.

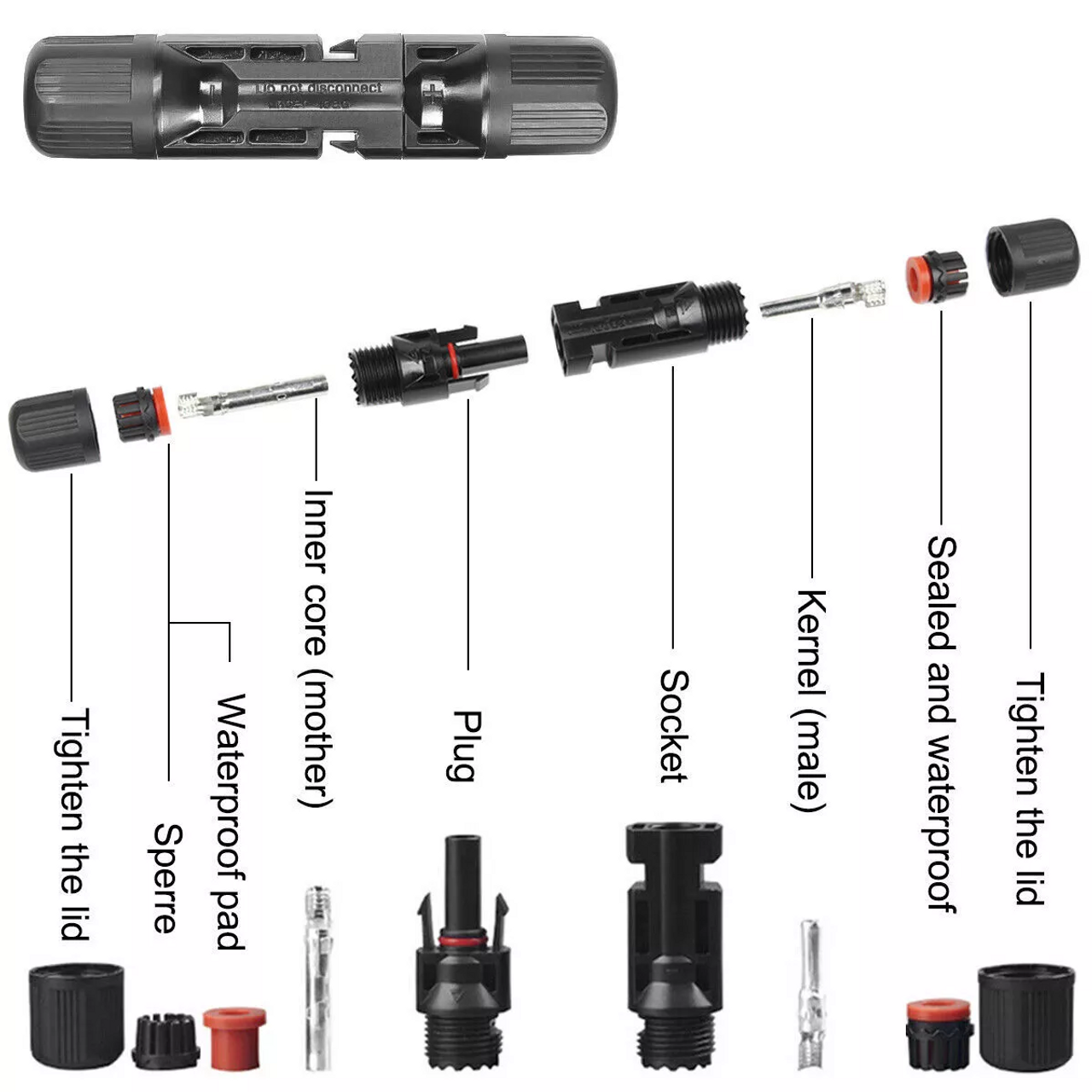

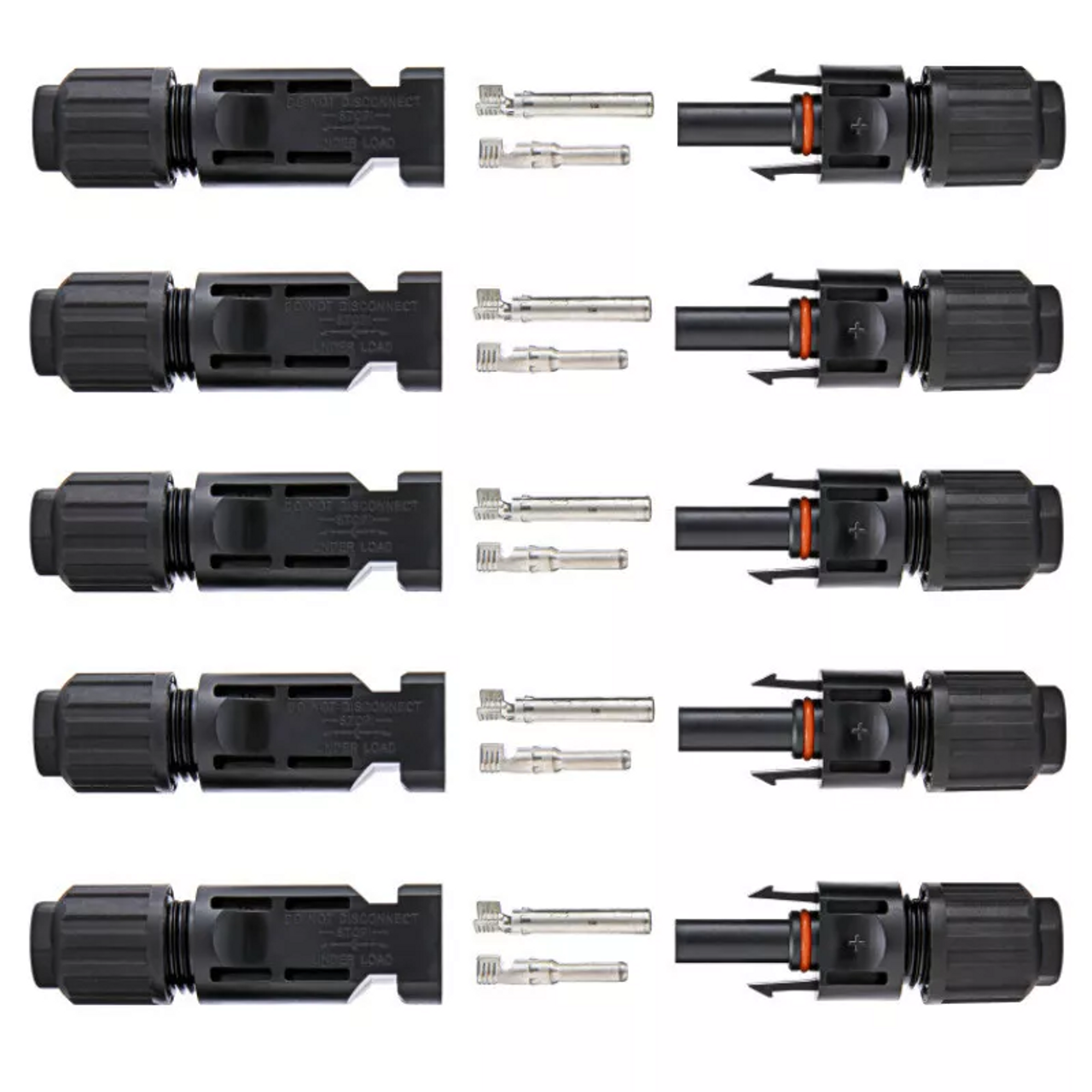

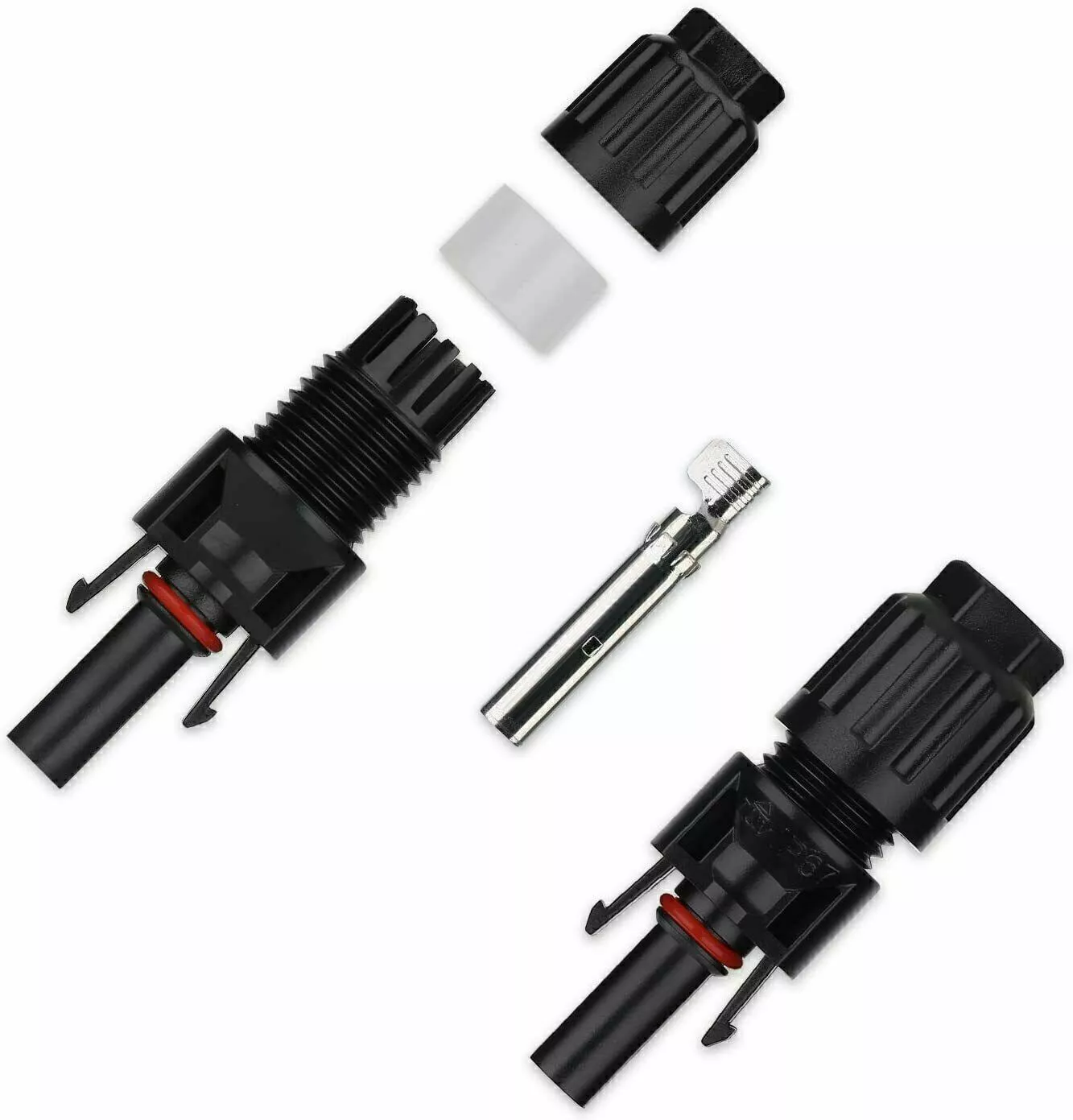

Comprehensive Kit for Easy Installation: Solar panel connector kit includes everything you need for a complete installation: equal pairs of male and female connectors, equal pairs of linker pins, and two specialized wrenches. This comprehensive set ensures that you have all the components to connect and maintain your solar panels effortlessly.

Effortless Setup & Maintenance: Designed with user convenience in mind, the solar connectors are incredibly easy to install.

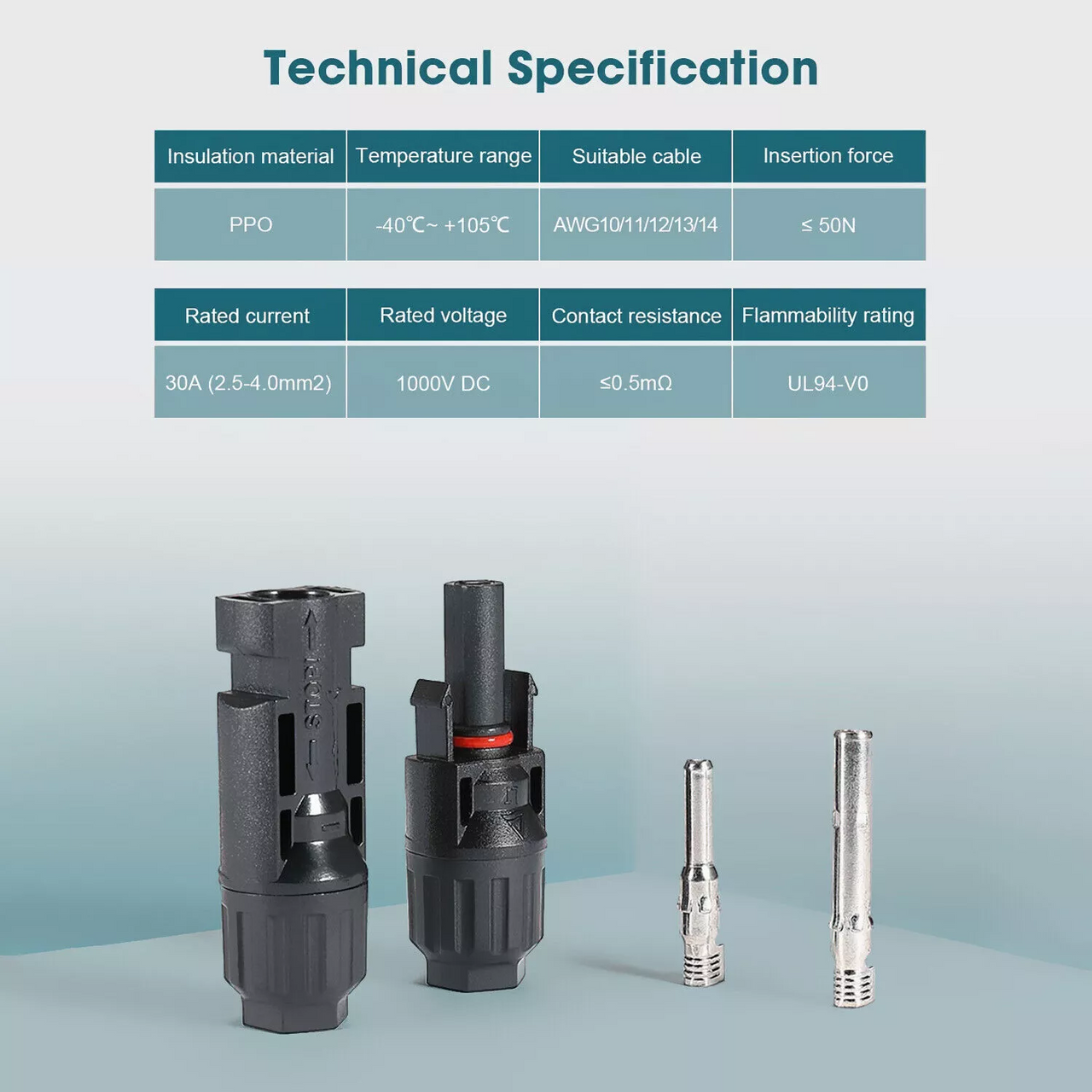

Specifications:

Color: Black
Material: PPO + ABS
Insulation Material: PC/PA, black
Contact Material: Copper, Sliver Plated
Protection Class: 2
Rated Current: 22(2.5 mm), 30A(4,6 mm)
Protection Degree:IP2X, unmated; IP67, mated
Temperature Range: -40 C ~ +90 C
Flame Class: UL94-VO or UL94-5VA
Rated Current: 30A
Suitable cable: 2.5mm2, 4mm2, 6mm2 (AWG14, AWG12, AWG10)
Pin dimension: 4.0 mm dia.
Contact resistance: ≤0.2mmΩ
Withdrawal force: ≥50N
Insertion force: ≤50N

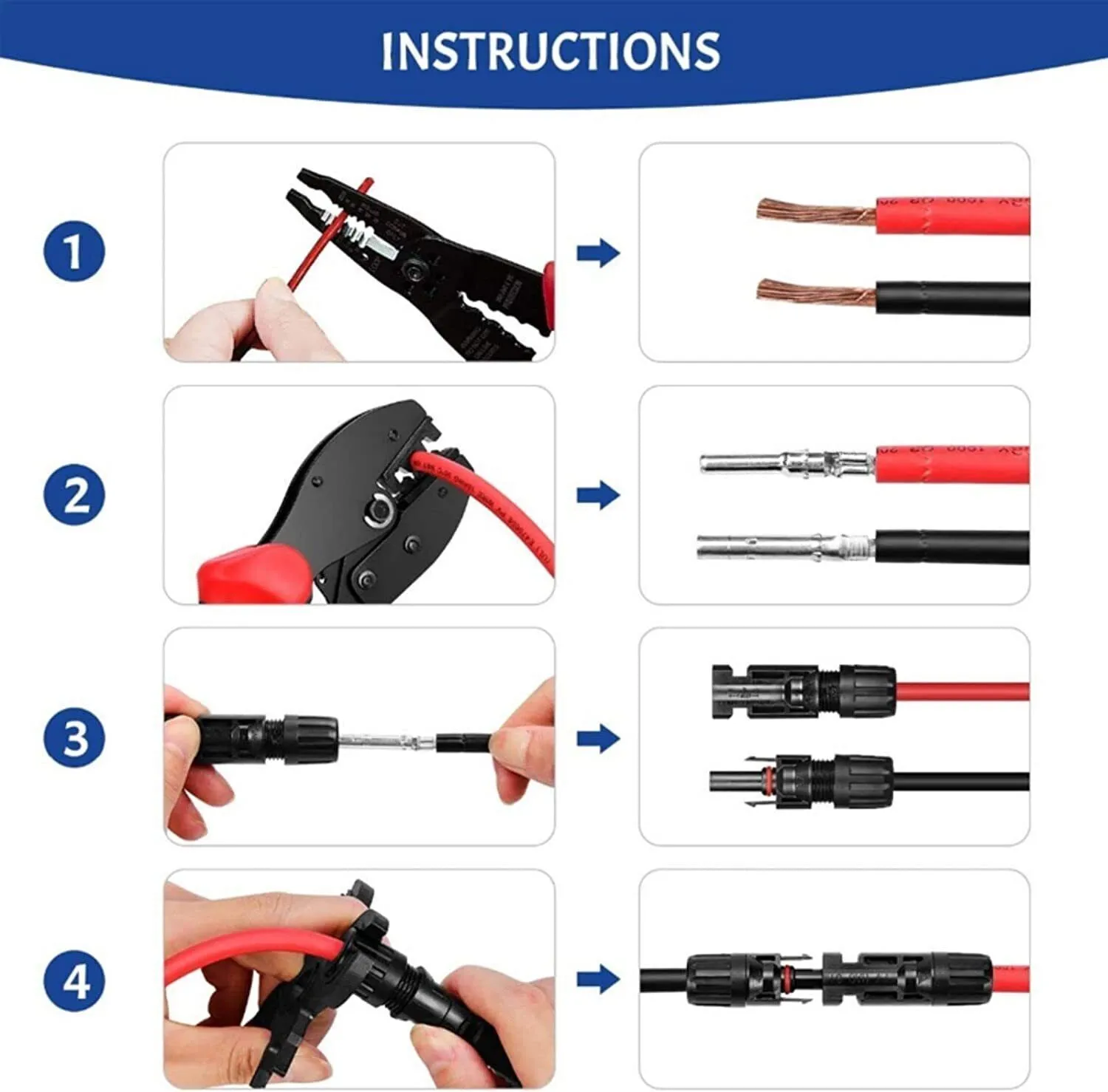

Connecting System: crimping connection

Features & Tips
Our solar connectors offer exceptional durability and versatility, making them ideal for solar panel installations in demanding environments. Made from high-quality PPO insulation and PA materials, these connectors are designed to withstand extreme weather conditions like high temperatures, heavy rainfall, and snowstorms. With an IP67 waterproof rating, they provide reliable protection against water and dust, ensuring that your solar setup continues to perform optimally outdoors. Additionally, their compatibility with a wide range of insulation diameters (14AWG to 10AWG) makes them suitable for various applications, allowing you to use them across different solar panel setups with ease. The tinned copper conductor pins enhance electrical conductivity, further ensuring stable and efficient energy transmission over long periods.

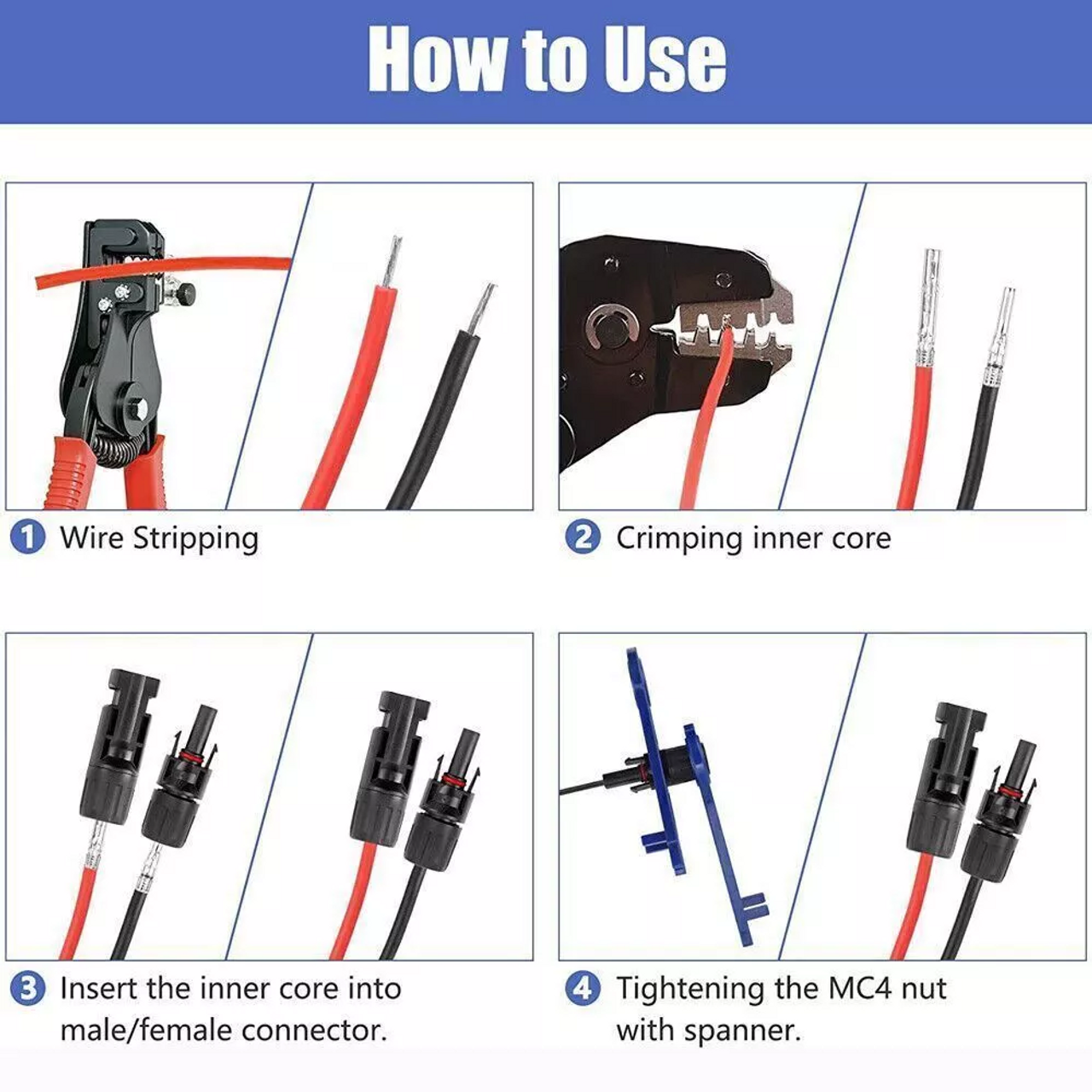

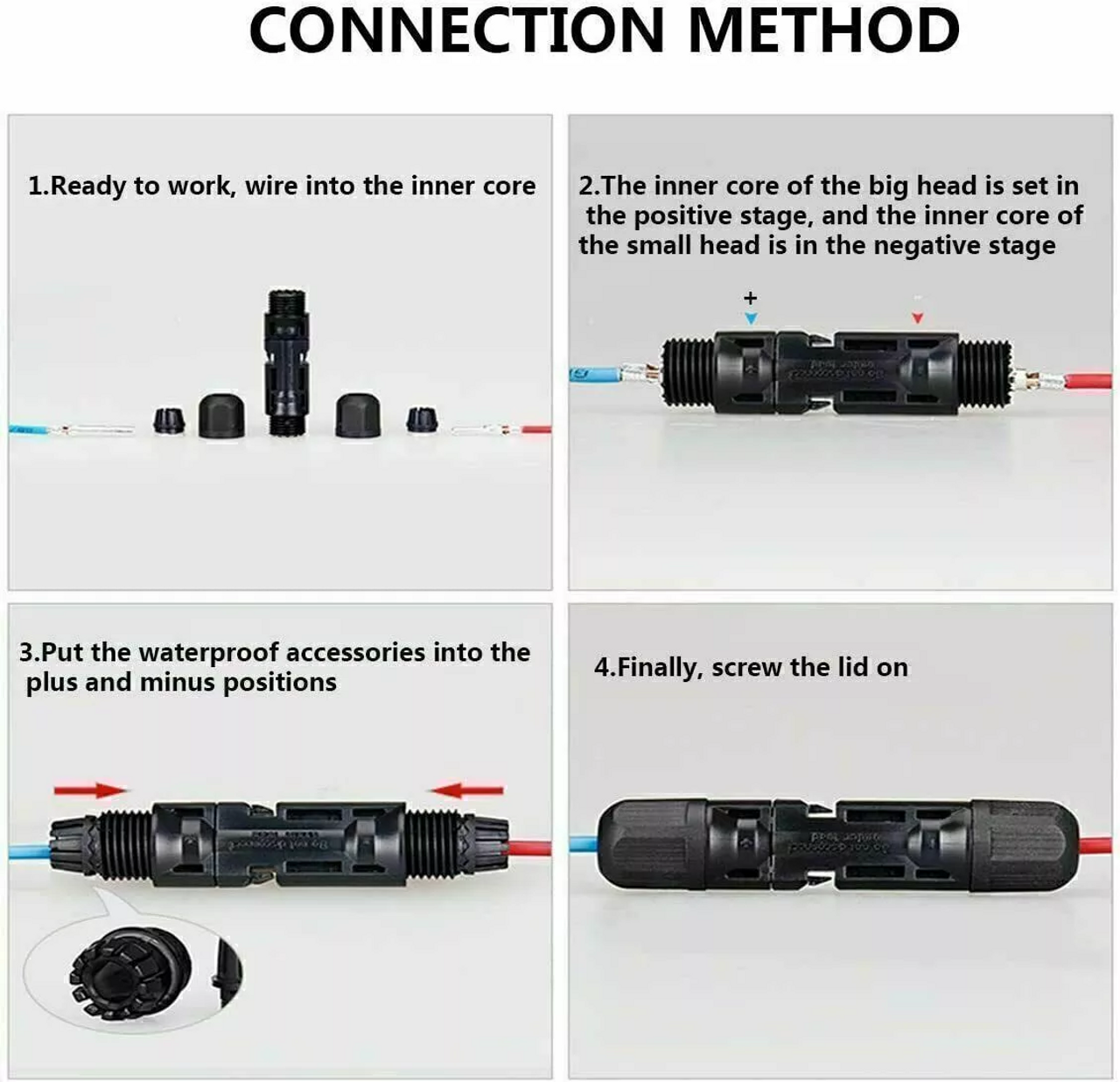

When setting up your solar panel array, connectors make installation simple and stress-free. The included installation wrenches allow for quick assembly and disassembly without damaging the connectors, which is essential for easy maintenance and future adjustments. To get the best results, ensure the connectors are tightly fastened and properly sealed to maintain their IP67 waterproof protection. Also, when installing in parallel solar arrays, double-check the connector's ratings (1000V DC and 30A) to ensure they meet the requirements of your solar setup. For added safety, make sure the connectors are flame retardant rated and placed in areas where they won’t be exposed to excessive heat sources. Proper care and attention during installation will maximize the performance and lifespan of your solar system.

Weather Resistant

Designed to handle harsh outdoor conditions, our solar connectors are UV-resistant and can endure high temperatures, heavy rains, and even snow, ensuring consistent performance in any climate.

Versatile Compatibility

These connectors support a broad range of cable sizes, from 14AWG to 10AWG, allowing them to be used with different solar panel systems, making them a flexible solution for residential, commercial, and off-grid setups.

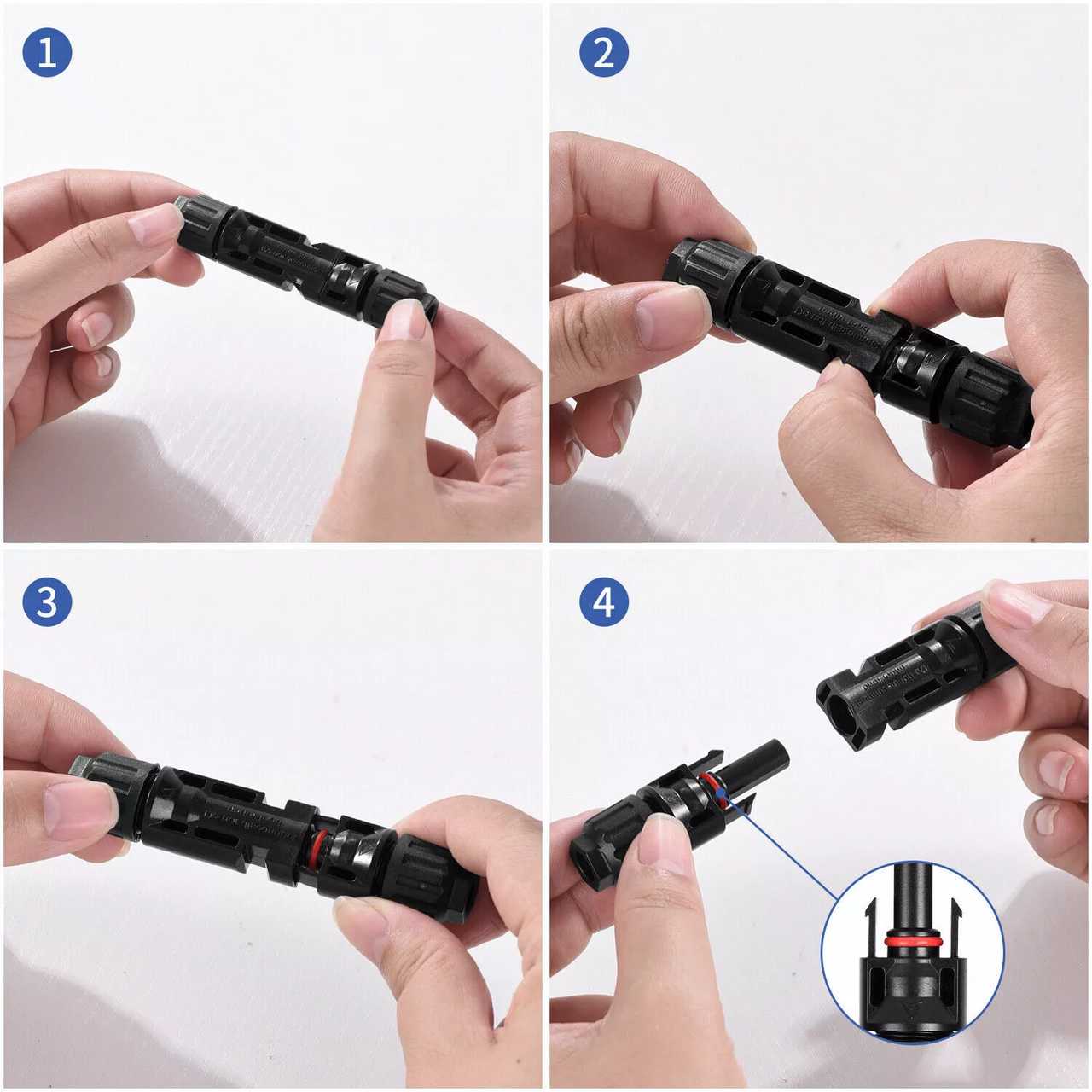

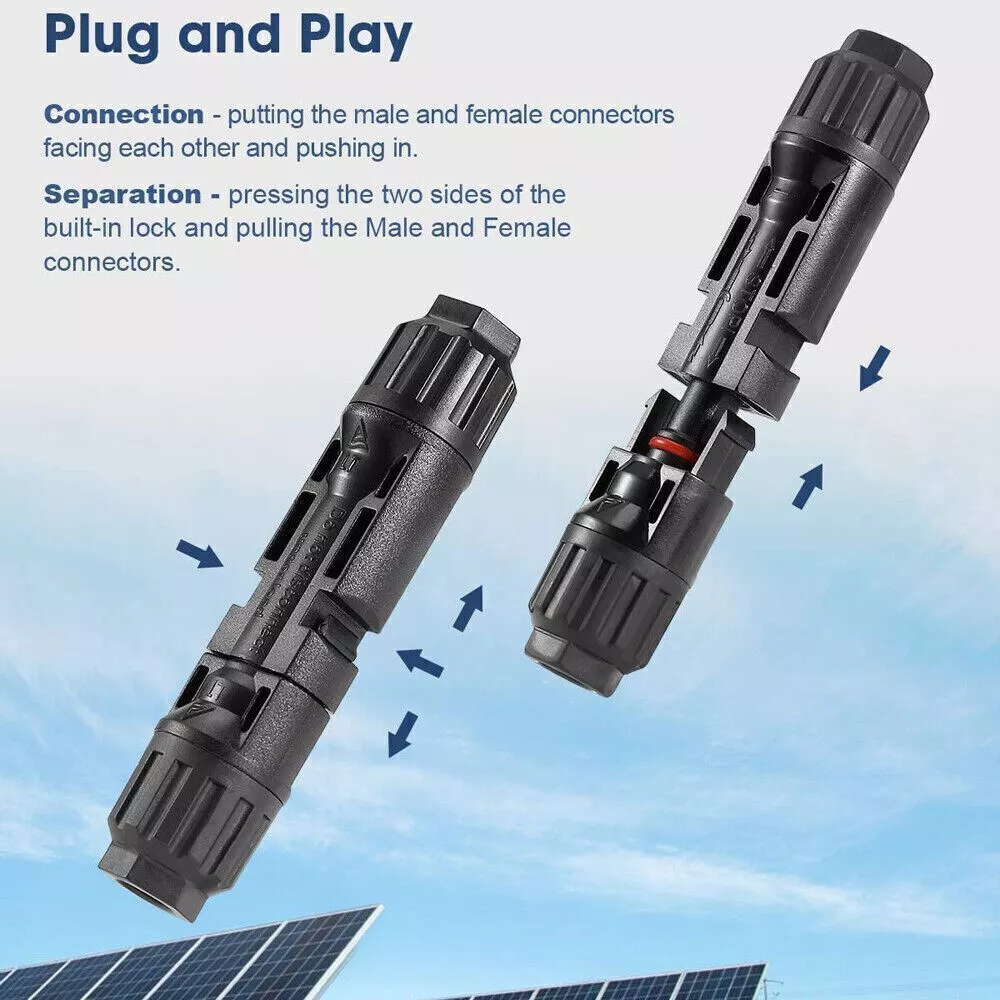

Quick and Secure Assembly

The included installation wrenches make connecting and disconnecting the solar connectors hassle-free, allowing you to complete your setup quickly without damaging the plugs. This tool-free assembly ensures long-lasting reliability.

Enhanced Electrical Safety

Enhanced Electrical Safety: With a high voltage capacity of 1000V DC, 30A current rating, and flame retardant certification, these connectors provide a safe and stable power connection, minimizing the risk of electrical issues and ensuring safe long-term use.

Package includes:

1 x 10/20/50/100/200 Pairs Male Female Solar Cable Connectors For DIY Solar Panel US (Please Select Pack of Pairs at Above Menu)

Shipping Information:

Your item Ships Same Day to 1 Business Day from our California Location.
